WHOLESALE  ONLY

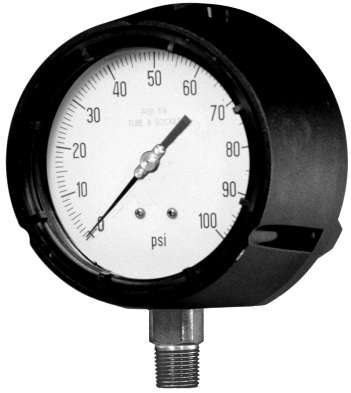

PROCESS GAUGE


serps gauge For use with a variety of media. Phenolic case is 4½" with a front stainless steel safety bulkhead. SS Bourdon type tube, movement & socket. Reinforced blow-out back. Internal diaphram prevents temperature errors. Dry Accuracy is ½% full range (Grade 2A, ANSI B40.1). Gauge is already equipped with Viton O-ring & Buna N bladder seal kit and may be filled at small additional cost. Filling reduces accuracy by ½%. Pointer has zero reset. Acrylic lens. Mostly secondary stock.*

SERIES PS-FILLABLE PHENOLIC CASE, Stainless Internals
Dia Pressure Range Detail
4½" 30, 60, 100, 160, 200, 300, 600 & 1000 psi
1500, 2000, 3000, 5000 psi
10,000m, 20,000 & 30,000 psi (may be special order).
Vacuum, Compound & 15 psi
(Glycerine Filling add Accuracy index 1/4% dry, of 1/2" filled).
More
* Secondary Stock - Please call for delivery/availability
